How to Replace a Damaged Polycarbonate Sheet

Polycarbonate roofing sheets are designed to provide many years of reliable performance, but like any external building material they can become damaged over time due to weather, impact, incorrect maintenance or accidental damage.

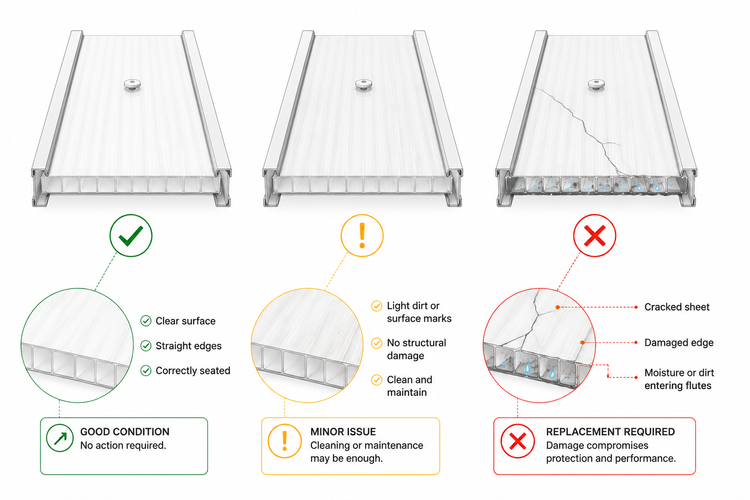

Not every issue requires a complete sheet replacement. Minor surface marks, dirt or condensation are often maintenance issues rather than signs that the sheet has failed.

However, replacement should be considered when the sheet has suffered damage that affects its strength, appearance or ability to keep the roof weather resistant.

Common signs that a polycarbonate sheet may need replacing include:

• Cracks or splits running through the sheet.

• Severe impact damage from falling branches or debris.

• Large areas of permanent discolouration or clouding.

• Damaged sheet edges that prevent a proper seal.

• Water or dirt entering inside the internal flutes.

• A sheet that has become distorted and no longer sits correctly within the glazing system.

Before replacing a sheet, it is important to identify the cause of the damage. If the problem is caused by an installation issue, such as incorrect fixing, missing sealing tapes or restricted thermal movement, replacing the sheet alone may not prevent the same issue happening again.

Before removing anything, it is important to confirm exactly which sheet needs replacing and understand how it is installed within the roofing system.

Begin by inspecting the damaged area from both inside and outside the roof where possible. Check the full length and width of the sheet, as damage is not always limited to the area where it is first noticed.

Before removing the sheet, compare it with the surrounding panels and record the important details:

• Sheet thickness (for example 10mm, 16mm or 25mm).

• Sheet colour.

• Sheet width and length.

• Position within the roof layout.

• Location of glazing bars, fixings and supporting structure.

It is also worth checking the surrounding components before replacement begins. Inspect the glazing bars, end closures, sealing tapes, flashings and fixings to make sure the damaged sheet is not the result of another issue.

Replacing a sheet without correcting the original cause of the damage may result in the same problem occurring again in the future.

Once the replacement sheet has been identified and all measurements have been confirmed, the damaged sheet can be carefully removed from the roof system.

The removal method will depend on how your roof was originally installed. Polycarbonate sheets may be held in place using glazing bar caps, fixing buttons, H sections, end closures or other roofing components.

Before removing the sheet, carefully release any components that are securing it in position. Take care not to damage neighbouring sheets, glazing bars or supporting structures, as these components may be reused with the replacement panel.

Remove the sheet slowly and avoid forcing it out of position. Polycarbonate can become brittle after many years of exposure, particularly if it has been affected by impact damage or temperature changes.

Once removed, inspect the surrounding area for any remaining debris, damaged seals or loose components. This is the ideal opportunity to correct any underlying issues before installing the new sheet.

Always work safely when accessing a roof area. Polycarbonate sheets are not designed to support body weight and should never be walked on during removal or installation.

Before installing the replacement sheet, take time to prepare it correctly. A few simple checks now will help ensure the new panel performs correctly and avoids problems later.

First, confirm that the replacement sheet matches the original panel. Check the thickness, colour, width and length before lifting it into position.

Next, check the UV protected side of the sheet. Polycarbonate roofing sheets have a UV protective layer on one side only, and this side must always face upwards towards the sky. Most sheets have protective film markings to help identify the correct orientation.

Before installation, prepare the sheet edges correctly. The upper end should be sealed with foil tape to help prevent dirt, dust and insects entering the internal flutes. The lower end should be fitted with breather tape to allow any condensation inside the sheet to drain away naturally.

Once the tapes have been applied, fit the correct end closures where required and carry out one final check that the sheet is ready to install.

Preparing the replacement sheet correctly before lifting it onto the roof will help ensure it performs in the same way as the original roofing system.

With the replacement sheet correctly prepared, it can now be positioned into the roof system. Take your time during this stage, as correct alignment is essential for creating a weather-resistant and long-lasting installation.

Carefully lift the sheet into position and place it between the glazing bars or within the existing roofing framework. The sheet should slide into position naturally without being forced.

Check that the sheet is sitting evenly along its full length and that both edges are correctly supported. The panel should remain flat, with no twisting, bowing or stress around the edges.

Remember that polycarbonate expands and contracts as temperatures change. The replacement sheet must have enough freedom to move naturally within the roofing system, so it should never be forced tightly into position or fixed in a way that prevents thermal movement.

Once positioned, reinstall the relevant roofing components such as glazing bar caps, fixing buttons, flashings or trims according to the original installation method.

Before moving on, compare the replacement sheet with the surrounding panels to ensure the roof line remains straight, even and correctly aligned.

Once the replacement sheet has been installed, carry out a final inspection before considering the repair complete.

Check that the new sheet is sitting at the same height and alignment as the surrounding panels. The roof should have a continuous, even appearance with no raised edges, gaps or areas where the sheet is under stress.

Confirm that all components have been refitted correctly, including glazing bar caps, fixing buttons, flashings, end closures and any finishing trims used by your roofing system.

Inspect the sheet edges to ensure the sealing tapes remain correctly positioned and that there are no exposed openings where dirt or insects could enter the internal flutes.

Finally, test the roof during rainfall or using a gentle flow of clean water from a garden hose. Check that water follows the intended drainage path and that no leaks remain around the replacement sheet.

A correctly installed replacement panel should look and perform the same as the original roof, providing many more years of reliable service.
