How to Measure a Polycarbonate Roof
Accurate measurements are the foundation of every successful roofing project. Whether you're replacing an existing roof or building a brand-new pergola, veranda, lean-to or canopy, measuring your roof correctly will help ensure your polycarbonate sheets and accessories fit perfectly.
The good news is that measuring a polycarbonate roof is much simpler than most people expect. In many cases, you only need a few key measurements before you're ready to order.
In this guide, we'll explain exactly what to measure, where to measure it from and the common mistakes to avoid, helping you order with confidence the first time.
Before You Start Measuring
Before climbing a ladder or reaching for your tape measure, it's worth taking a few minutes to understand exactly what you'll be measuring.
Don't worry if you've never measured a roof before. Most polycarbonate roofs can be measured using just a few simple dimensions, and you don't need any specialist knowledge or expensive equipment.
If possible, we always recommend measuring the roof structure itself rather than relying on old drawings or previous order confirmations. Small differences of just a few millimetres can sometimes affect how your roofing system fits together.
It's also a good idea to measure everything twice before ordering. Spending an extra few minutes checking your measurements can help avoid delays, additional costs and unnecessary frustration later in the project.

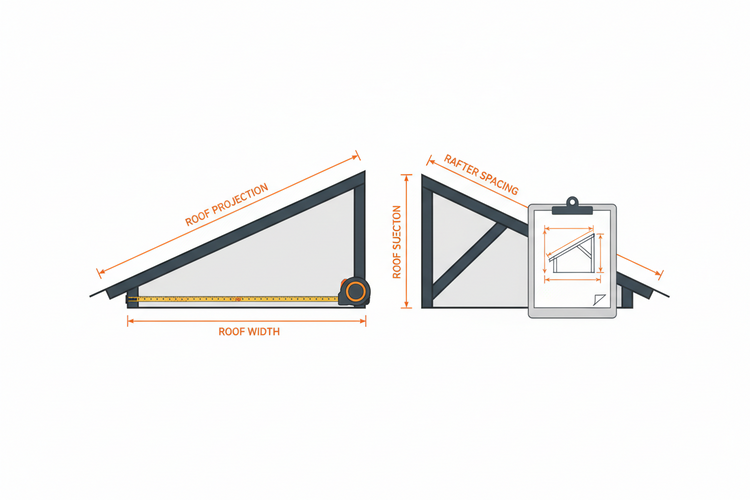

The Three Measurements You'll Need
The good news is that measuring a polycarbonate roof is much simpler than many people expect. In most cases, you only need three key measurements before you're ready to order your roofing sheets.
1. Roof Width
The roof width is the total distance across the front of your roof, measured from one outside edge to the other. This measurement determines the overall width of your roofing system and how many sheets you'll need.
2. Roof Projection
The roof projection is the distance the roof extends away from the wall or supporting structure. It's sometimes referred to as the roof depth or roof length. This measurement determines the length of your polycarbonate sheets.
3. Rafter Spacing
Rafter spacing is the distance between each roof rafter or glazing bar. This measurement is important because it helps determine whether your chosen sheet thickness is suitable for your roof design.
Once you have these three measurements, you'll have everything you need to begin planning your polycarbonate roof with confidence.

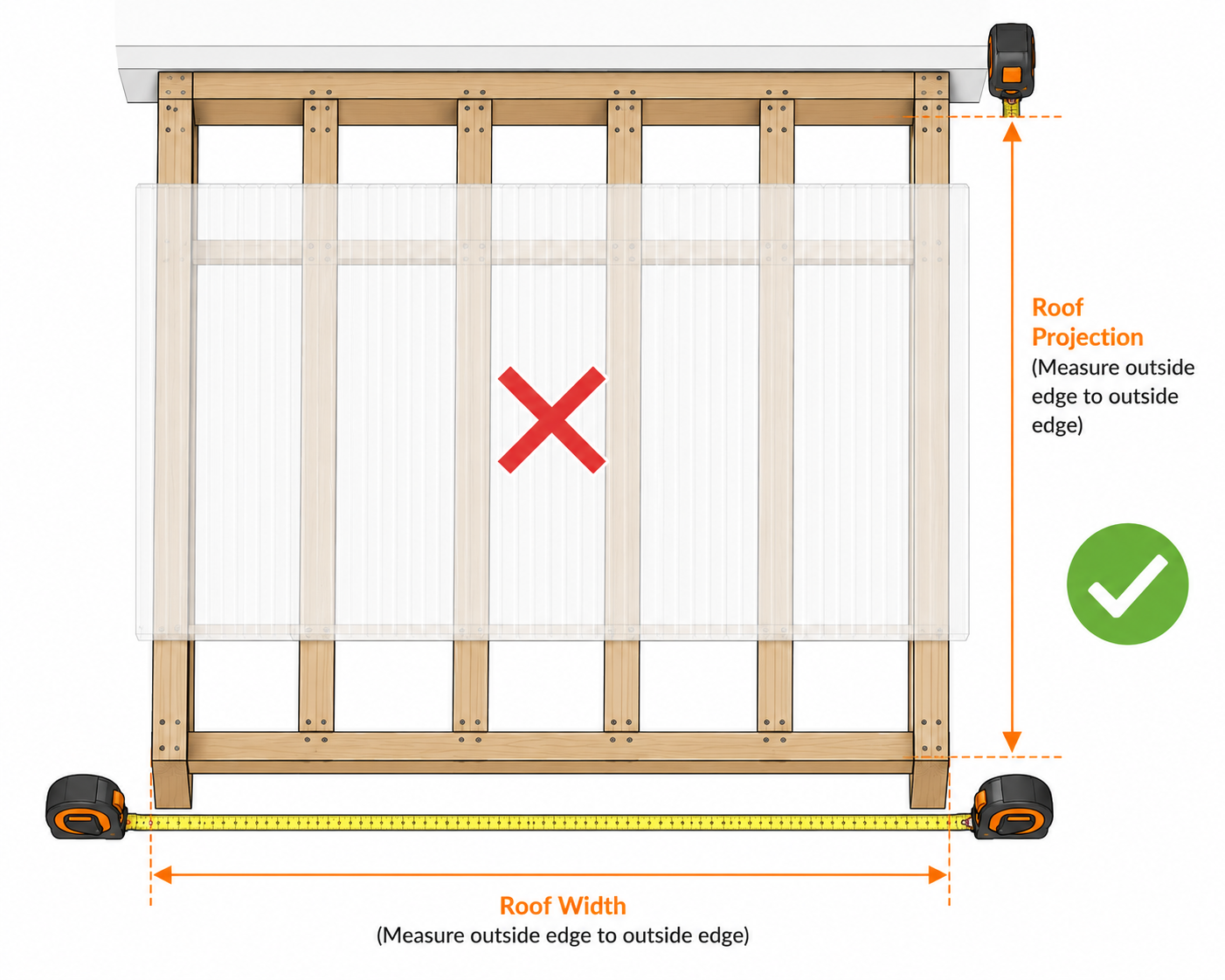

Where Should You Measure From?
One of the most common mistakes people make is measuring the existing polycarbonate sheets instead of the roof structure itself.
Where possible, always measure the timber or aluminium framework that will support the new roof. This provides the most accurate measurements and ensures your new sheets are sized correctly for the structure.
If you're replacing an existing roof, don't assume the current sheets are the correct size. They may have been cut down during installation, allowed for expansion gaps or simply measured incorrectly when they were originally fitted.
When measuring your roof:
• Measure from the outside edge of the supporting structure.
• Measure in millimetres wherever possible, as this provides greater accuracy.
• Measure each dimension twice before ordering.
• If your roof isn't perfectly square, measure both sides and use the larger measurement. It's always easier to trim a sheet than discover it's too short.
Taking a few extra minutes to check your measurements now can save a great deal of time, money and frustration later.
Measuring a Lean-to Roof
A lean-to roof is the most common type of polycarbonate roof and is typically attached to the wall of a house, garage or other building. The opposite side of the roof is supported by posts, creating a simple sloping roof.
To measure a lean-to roof, you only need a few simple dimensions.
Step 1 – Measure the Roof Width
Measure across the front of the roof from the outside edge of one side to the outside edge of the other. This measurement determines the overall width of your roofing system.
Step 2 – Measure the Roof Projection
Measure from the wall to the outside edge of the front beam. This tells you how long your polycarbonate sheets need to be.
Step 3 – Count the Rafters
Count how many rafters or glazing bars your roof has and, if possible, measure the distance between them. This helps confirm the correct sheet layout and whether your chosen sheet thickness is suitable.
Before ordering, check all of your measurements one final time. If your roof is older, don't assume both sides are identical. Measuring twice is always worthwhile and helps avoid costly mistakes.
Measuring an Existing Polycarbonate Roof
If you're replacing old polycarbonate sheets, measuring your roof is often even easier because the supporting framework is already in place.
The most important thing to remember is not to rely solely on the size of your existing sheets. Over time, sheets may have been trimmed during installation, replaced individually or fitted with larger expansion gaps than originally intended.
Instead, we recommend measuring the roof structure wherever possible.
Start by measuring the overall roof width from the outside edge of the framework. Next, measure the roof projection from the wall to the front beam. Finally, count the number of glazing bars or rafters and, if possible, measure the spacing between them.
It's also worth checking the condition of your glazing bars, end closures, tapes and fixings. If they're worn or damaged, replacing them at the same time as your new sheets will help ensure your new roof performs as expected and remains weatherproof for years to come.
Taking a little extra time to inspect the entire roofing system now can save considerable time and expense later.
Common Measuring Mistakes to Avoid
Even experienced DIYers can make simple measuring mistakes, especially when replacing an existing roof. Taking a few extra minutes to check your measurements before ordering can help avoid delays, unnecessary costs and frustration.

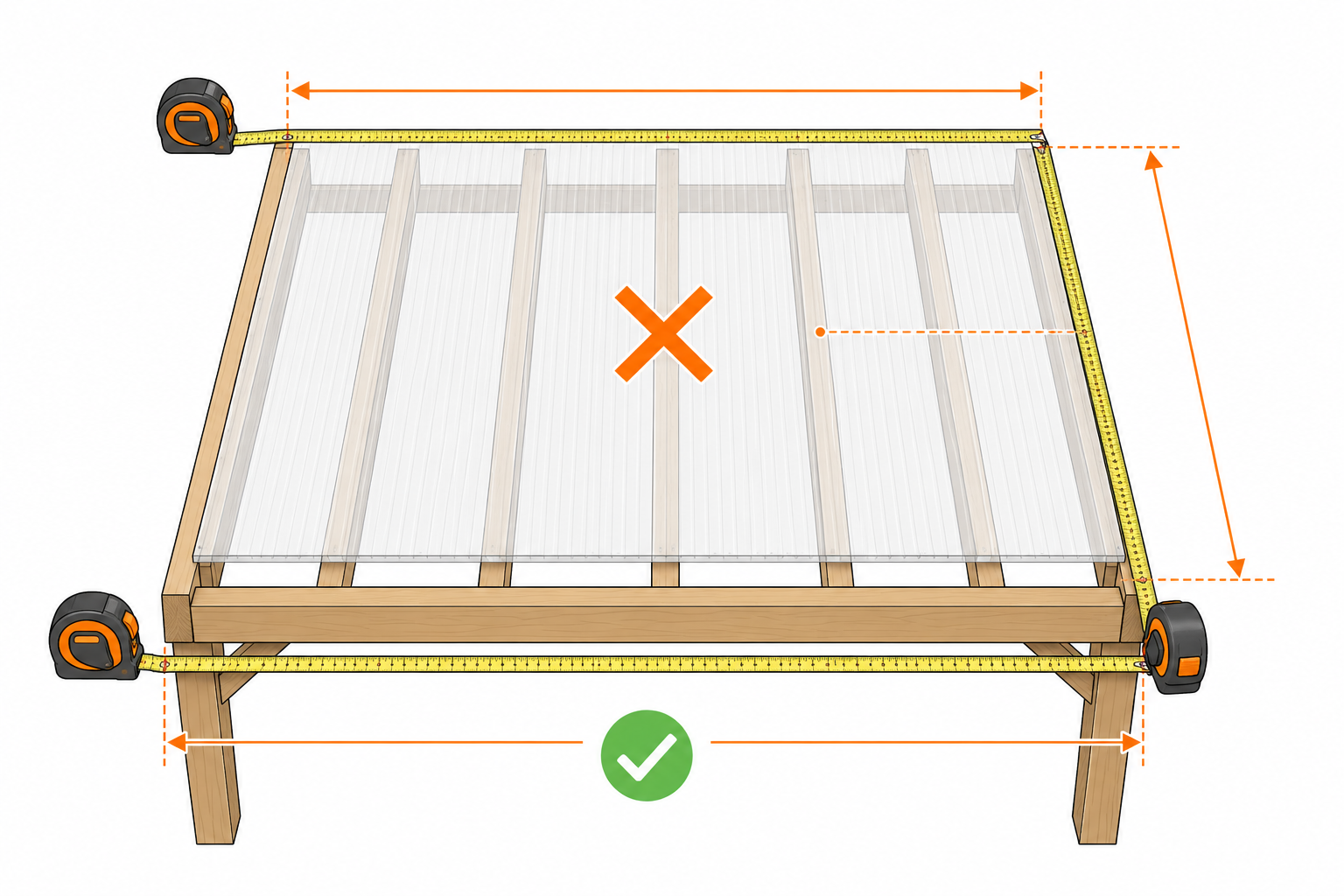

Measuring the Existing Sheets Instead of the Roof
Existing polycarbonate sheets may have been trimmed during installation or allowed for expansion gaps. Always measure the supporting framework where possible rather than relying on the size of the old sheets.
Measuring Only Once
It's surprisingly easy to misread a tape measure or write down the wrong figure. We always recommend measuring each dimension at least twice before placing your order.
Forgetting the Roof Isn't Perfectly Square
Not every roof is perfectly built. If one side measures slightly differently to the other, make a note of both measurements. Small variations are common, particularly on older structures.
Using the Wrong Units
For the most accurate results, measure in **millimetres (mm)** rather than metres or centimetres. This reduces the chance of errors when ordering your roofing sheets.
Guessing Missing Measurements
If you can't safely access part of the roof, don't guess. It's always better to wait until you can take an accurate measurement or contact us for advice before ordering.
By avoiding these common mistakes, you'll greatly increase the chances of your new roofing system fitting correctly the first time.
Frequently asked questions
Can I measure my roof on my own?
Yes, although having someone to hold the tape measure will usually make the job quicker and more accurate, especially on larger roofs.
Should I measure in millimetres or metres?
We always recommend measuring in millimetres (mm). This provides the greatest level of accuracy and helps avoid conversion mistakes when ordering your roofing sheets.
What if my roof isn't perfectly square?
This is very common, particularly on older structures. Measure both sides of the roof and make a note of any differences. If you're unsure which measurement to use, contact us before ordering.
Should I measure the old sheets or the roof structure?
Where possible, always measure the roof structure rather than the existing sheets. Old sheets may have been trimmed during installation or installed with expansion gaps.
Do I need to measure the rafters?
Yes, if possible. Knowing the number of rafters and the spacing between them helps ensure the correct sheet layout and confirms that your chosen sheet thickness is suitable.
What if I'm replacing damaged sheets?
Even if you're only replacing one or two sheets, it's worth checking all of your measurements before ordering. Existing roofs are not always built exactly as expected.
Can PolycarbonateX check my measurements before I order?
Yes. If you're unsure about any measurements or would simply like reassurance before ordering, our team will be happy to review your project and help you choose the correct roofing system.
Need More Help?
Still unsure which sheet thickness is right for your project? Our UK team can help you check your requirements, calculate the materials you need or visualise how your finished roof could look.
